PD3000 Series
PD3000 series is a classic European style design and often used in luxury buildings and places.
Certificate & Approvals
Manufactured by quanlity assured ISO9001 factory
CE Approval
600,000 cycles passed
5 years warranty
Available Temperature
-45°C to 50°C
Stable hydraulic oil for any climatic operation & constant lubrication
Model Door weight(KGS) Door width(mm)
PD3001 20-40 850
PD3002 25-45 950
PD3003 40-65 1000
Available for 3 different power sizes and could be used on interior or exterior doors

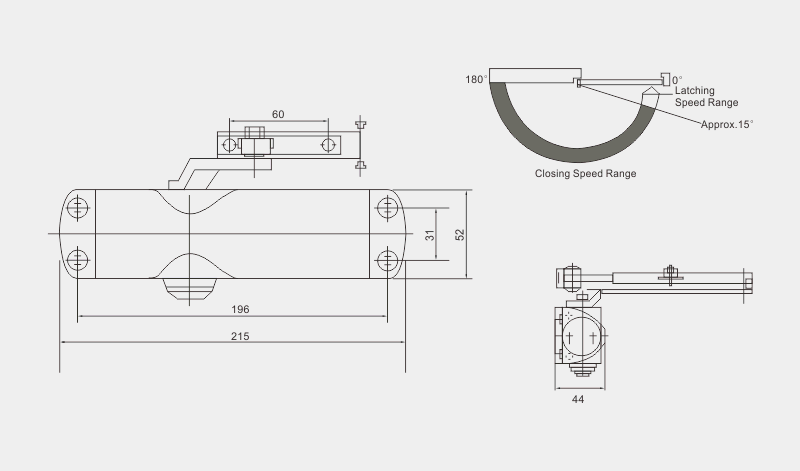

Adjustable closing & latching speed
Hold open arm (optional)
Construction & Technical Details

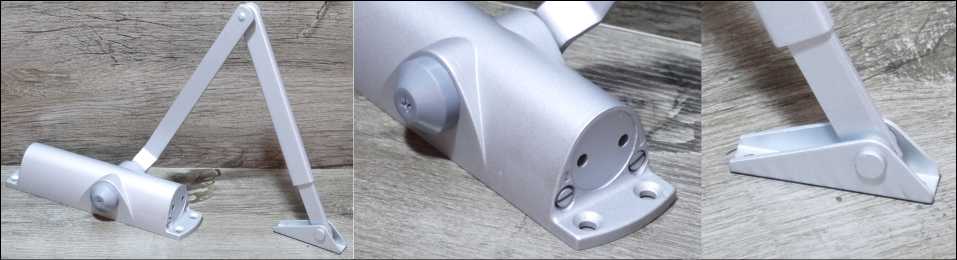

Constructed with precise aluminum die-casting body high quality steel internal components and chrome sliding rail arm
Heat treated steel rack & pinion immersed in high grade oil operate a nest of coils to give a smooth precise action & minimum wear.
Piston and spindle has been heat treated for high strength.
