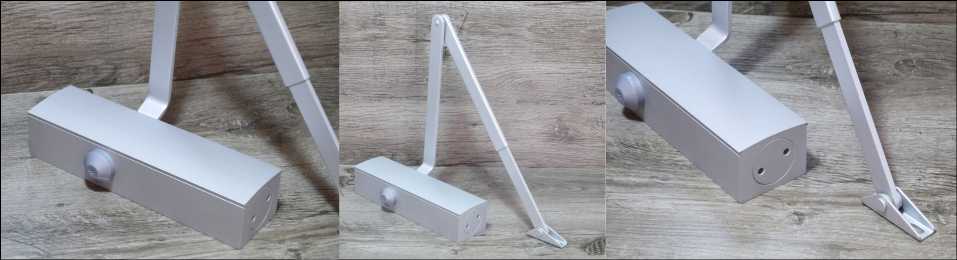

PD2000 Series
PD2000 series is elegant European style with top quality and powerful function, which can apply to various doors. This model could meet your any requirement.
Certificate & Approvals
Manufactured by quanlity assured ISO9001 factory
CE Approval
500,000 cycles passed
5 years warranty
Available Temperature
-45°C to 50°C
Stable hydraulic oil for any climatic operation & constant lubrication
Function
Adjustable closing speed at front
Hold open arm (optional)
Hold open arm can hold door open at any angles you desire
Sliding arm (optional)
Construction & Technical Details
Constructed with precise aluminum die-casting body
Heat treated steel rack & pinion immersed in high grade oil operate a nest of coils to give a smooth precise action & minimum wear.
Piston and spindle has been heat treated for high strength.
Needle bearing brings the best smoothness and efficiency to the operation
Model Door Mounting (mm) Body Dimension(mm)
Max Size(mm) Weight(KGS) Hor.(B) Ver.(C) Bracket(F)

Length(A)

Width(D) Height(E)
PD2000 950 90 135 44 45 226 60 48
Drawing
