PD1000 Series
PD1000 series is a classic style of conceal door closer with high
quality and excellent performance. Not only stars hotel loves this
model, also it's very popular in luxury buildings.
Certificate & Approvals
Manufactured by quanlity assured ISO9001 factory
UL Approval & CUL Certificate
500,000 cycles passed
5 years warranty
Available Temperature
-45°C to 50°C
Stable hydraulic oil for any climatic operation & constant lubrication
Installation
PD1000 series is versatile and easy installation for both right and left hand door and can
be used in standard or over-head installation.
Door thickness requirement
| Model | Steel Door | Wooden Door |
| Standard Installation | ≥36mm | ≥40mm |
| Over-head Installation | ≥33mm | ≥37mm |
Function
Available for 2 different power sizes and could be used on interior or exterior doors
Adjustable closing & latching speed
Construction & Technical Details
Constructed with precise aluminum die-casting body with steel arm against rust.
Heat treated steel rack & pinion immersed in high grade oil operate a nest of coils to give a smooth precise action & minimum
wear.
All components are invisible when the door is closed
Piston and spindle has been heat treated for high strength.

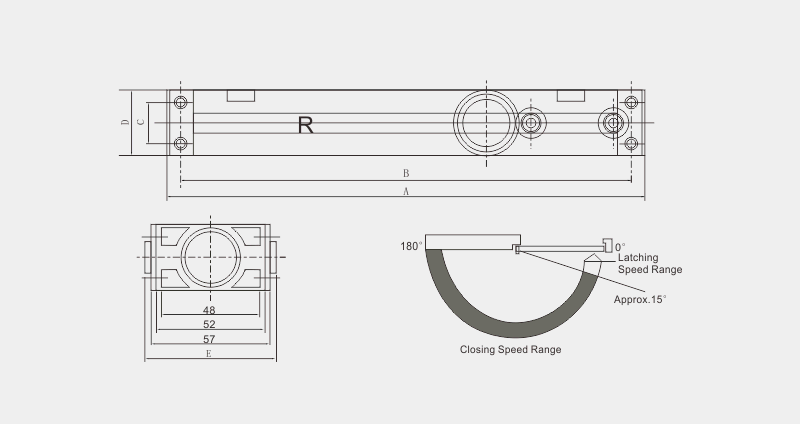

| Model | Door weight(KGS) | Mounting | Function | |||
| Horizontal(B) | Vertical(C) | Length(A) |
Width(D) | Height(E) | ||
| PD1000 | 26-65 | 218 | 20 | 230 | 32 | 63 |
