AD700 Series
Economic Model for Home and Office Use
Certificates & Approvals
Manufactured by quality assured ISO 9001 factory
500,000 cycles passed
Available Temperature
-45°C to 50°C
| Model | Door weight(KGS) | Door width(mm) | Mounting | Speed Adjustable | ||
| Horizontal | Vertical | Latching |
Closing | |||
| AD703 | 40-65 | 1000 | 180 | 19 | YES | YES |
| AD704 | 60-80 | 1100 | 180 | 19 | YES | YES |
Function
Available for 2 different power sizes and could be used on interior or exterior doors
Adjustable closing & latching speed

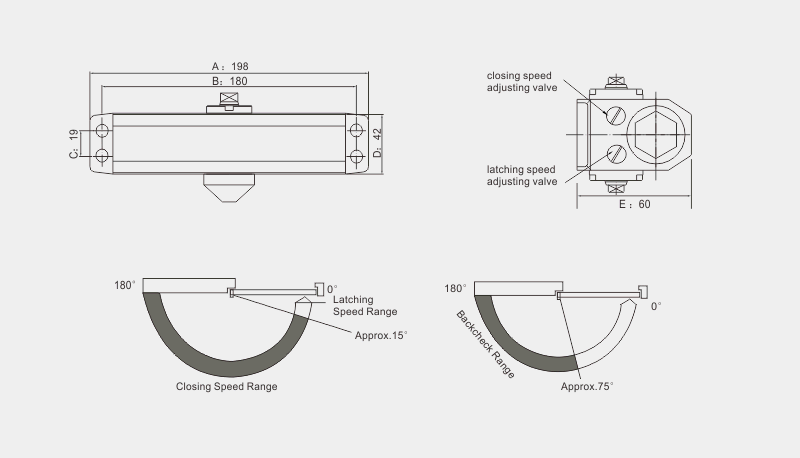

"1" --- Closing speed adjusting valve,range from 180° to 15°
"2" --- Latching speed adjusting valve,range from 15° to 0°
Construction & Technical Details

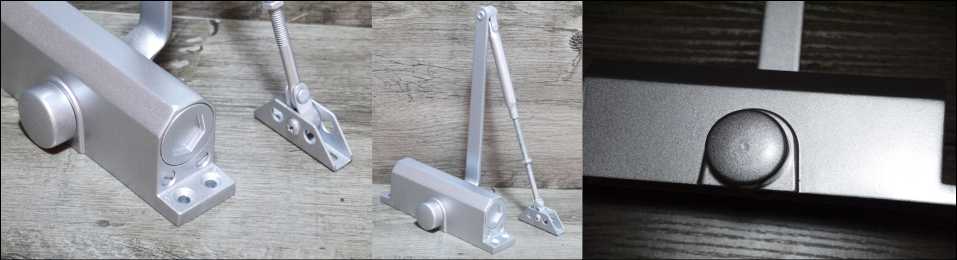

Constructed with precise aluminum die-casting body with steel arm against rust.
Heat treated steel rack & pinion immersed in high grade oil operate a nest of coils to give a smooth precise action & minimum
wear.
Piston and spindle has been heat treated for high strength.
