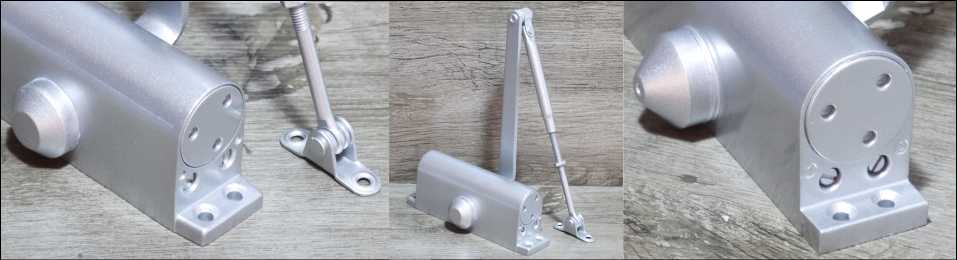

AD600 Series
Economic Model for Home and Office Use
Light and Medium Duty Residential and Commercial Use
Available Temperature
-45°C to 50°C
| Model | Door weight(KGS) | Door width(mm) | Mounting | Function | ||
| Horizontal | Vertical | Hold open |
Back Check | |||
| AD601 | 0-30 | 850 | 125 | 19 | YES | YES |
| AD602 | 20-45 | 950 | 162 | 19 | YES | YES |
| AD603 | 40-65 | 1000 | 188 | 19 | YES | YES |
Function
Available for 3 different power sizes and could be used on interior or exterior doors

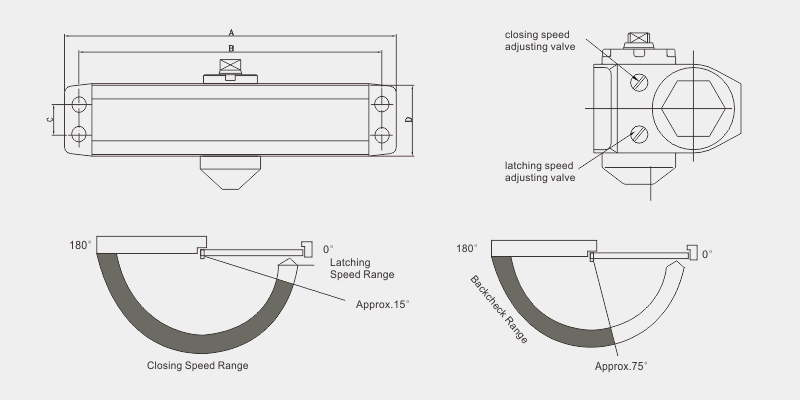

Adjustable closing & latching speed
"1" --- Closing speed adjusting valve,range from 180° to 15°
"2" --- Latching speed adjusting valve,range from 15° to 0°
Construction & Technical Details
Constructed with precise aluminum die-casting body with steel arm against rust.
Heat treated steel rack & pinion immersed in high grade oil operate a nest of coils to give a smooth precise action & minimum
wear.
Piston and spindle has been heat treated for high strength.
| Model | AD601 | AD602 | AD603 |
| BODY LENGTH (A) | 144 | 177 | 204 |
| BODY WIDTH (A) | 38 | 42 | 45 |
| BODY HEIGHT (A) | 59 | 65 | 70 |
