AD300 Series
European Style Designed
Light and Medium Duty Residential and Commercial Use
Available Temperature
-45°C to 50°C
| Model | Door weight(KGS) | Door width(mm) | Mounting | |
| Horizontal | Vertical | |||
| AD301 | 0-30 | 850 | 202 | 19 |
| AD302 | 20-45 | 950 | 202 | 19 |
| AD303 | 40-65 | 1000 | 202 | 19 |
Function
Available for 3 different power sizes and could be used on interior or exterior doors
Adjustable closing & latching speed

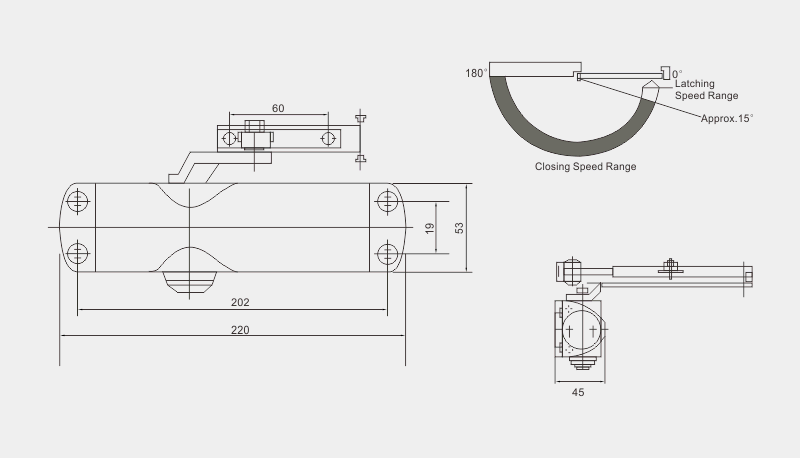

"1" --- Closing speed adjusting valve,range from 180° to 15°
"2" --- Latching speed adjusting valve,range from 15° to 0°
Construction & Technical Details

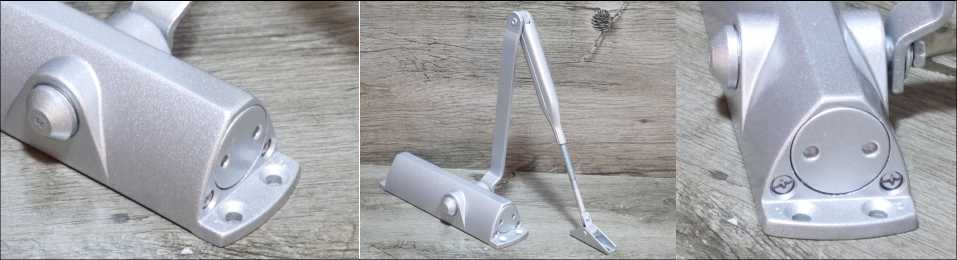

Constructed with precise aluminum die-casting body with steel arm against rust.
Heat treated steel rack & pinion immersed in high grade oil operate a nest of coils to give a smooth precise action & minimum
wear.
Piston and spindle has been heat treated for high strength.
