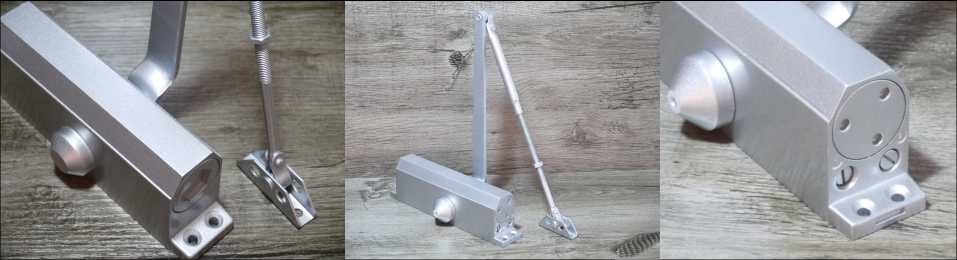

AD100 Series
Certificate & Approvals
Manufactured by quanlity assured ISO9001 factory
UL Approval & CE Certificate
500,000 cycles passed
5 years warranty
Available Temperature
-45°C to 50°C
Stable hydraulic oil for any climatic operation & constant lubrication
| Model | Door weight(KGS) | Door width(mm) | Mounting | Function | ||
| Horizontal | Vertical | Hold open |
Back Check | |||
| AD101 | 0-30 | 850 | 132 | 19 | Opt | |
| AD102 | 20-45 | 950 | 162 | 19 | Opt | |
| AD103 | 40-65 | 1000 | 188 | 19 | Opt | |
| AD104 | 60-85 | 1100 | 208 | 19 | ||
| AD105 | 80-100 | 1250 | 230 | 19 | Opt | |
| AD106 | 100-120 | 1400 | 230 | 19 | ||
Function
Available for 6 different power sizes and could be used on interior or exterior doors

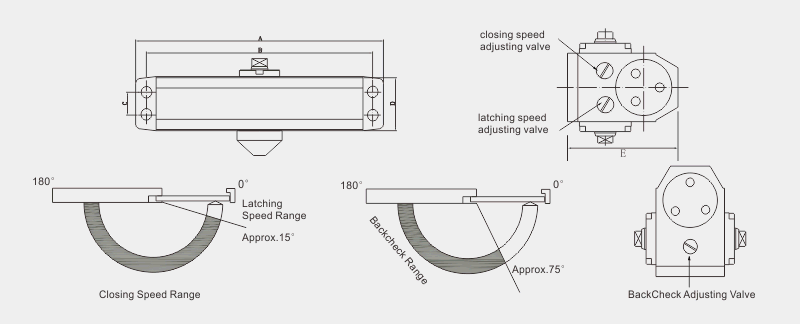

Adjustable closing & latching speed
"1" --- Closing speed adjusting valve,range from 180° to 15°
"2" --- Latching speed adjusting valve,range from 15° to 0°
Built-in hold open(optional)
Built-in hold open function can be used to hold door open at angles 85 round.Available for Power 1,2,3
Adjustable Back-check Function(Optional)
Provides resistance within the door closer to prevent the door leaf from being thrown open. The angle and resistance of the back
check can be varied according to your requirements. Normal operation range is 75° to 80°
Construction & Technical Details
Constructed with precise aluminum die-casting body with steel arm against rust.
Heat treated steel rack & pinion immersed in high grade oil operate a nest of coils to give a smooth precise action & minimum
wear.
Piston and spindle has been heat treated for high strength.
| Model | AD101 | AD102 | AD103 | AD104 | AD105 | AD106 |
| BODY LENGTH (A) | 140 | 177 | 206 | 222 | 244 | 244 |
| BODY WIDTH (A) | 36 | 41 | 45 | 45 | 45 | 45 |
| BODY HEIGHT (A) | 55 | 65 | 73 | 70 | 70 | 70 |
